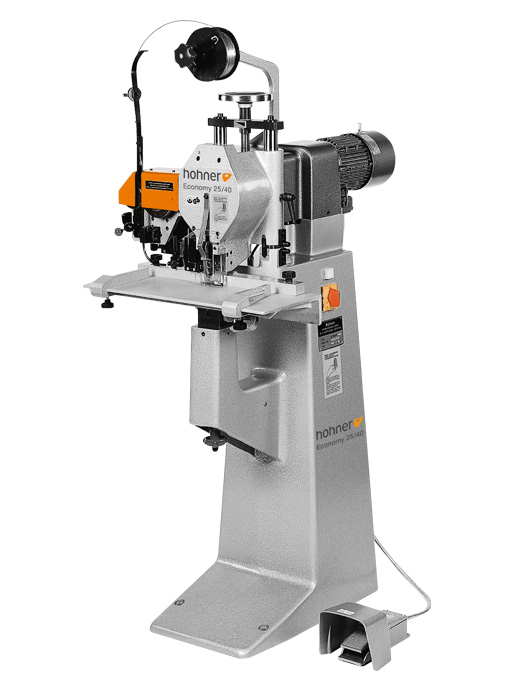

Economy 25/40

The Knocker

This single head wire stitching machine offers:

  • The perfect solution for standard and loop stitching of pads and brochures
  • Robust construction
  • Easily adjustable table from saddle for brochures, to flat for pads
  • Maximum stitching speed: 203 staples per minute
  • Table size : 700 x 240 mm
  • Hohner patented cutting system for optimum wire feed, even for thicker products (Computer and Digital printing)
  • Optional, quickly exchangeable conversion parts for loop stitching


Sascha Schmidt

Do you have questions or need more information? Please contact our sales department.

T +49 7462 9468-888

Technical Information

ECO 25/40
Capability and formats
Mechanic cycles per minute [Staples]203
Stitching table size [mm]700 x 240
Working height [mm]880
Throat depth from clincher box
to machine body [mm] for pad stitching
Throat depth from clincher box
to machine body [mm] for saddle stitching
Narrow Stitching heads
Maximum number of stitching heads1
Crown width [mm]14
Stitching wire
Round wire (standard)No. 21 – 30*
(Ø 0,80 – 0,35 mm)
Flat wireI – VI
(0,70 x 0,35 mm –
0,96 x 0,78 mm)
Wire for loop stitching on request
*wire sizes according to european norm
Other wire types on request
Max. stitching thickness
clinched staple [mm]25
stabbed from both sides [mm]40
Exchange parts for loop stitching up to [mm]3
All indications are depending on paper type and quality.
Single cycle operated by foot switch
Exchange parts for other types of wire
Exchange parts for loop stitching kit [mm]Ø 6.0
Machine height [mm]1540
Floor space required [in mm LxWxH]900 x 700 x 1540
Maximum number of work stations1
Noise emmission [dB(A)]< 82
Power requirements
Power [kW]0,55
Tension [V]230/400
Frequency [Hz]50/3~*
*Other tension types on request
Net weight [kg]200
Gross weight [kg]240
Packaging dimensions [in mm LxWxH]1030 x 800 x 1540

Subject to technical changes
