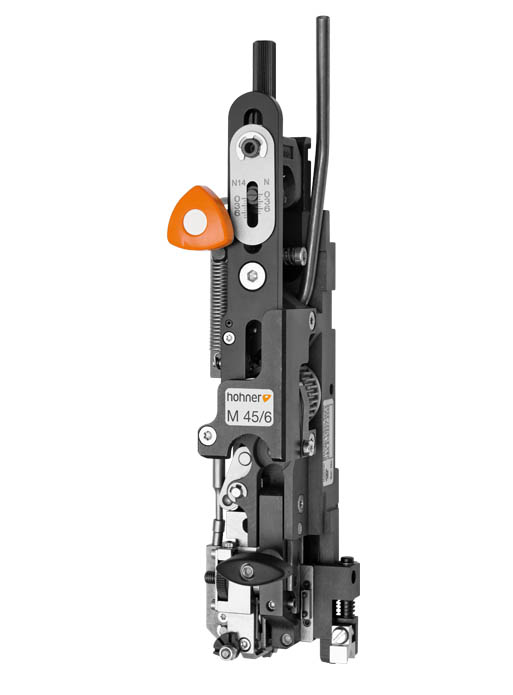

M 45/6

The Eliminator ... our answer to the competition ...

With this stitching head all users of Müller Martini, Osako and Purlux can also enjoy Hohner quality and reliability.

  • Specially developed for Müller Martini, Osako and Purlux saddle binders
  • One for three: Replaces the 3 original Müller Martini heads HK 75, 55 and 45
  • Toolless wire length and cutting box adjustment for stitching thicknesses in seconds
  • Accommodates stitching thicknesses from 2 sheets to 6 mm
  • Suitable for multiple applications due to its narrow design and 45 mm minimum between stitch distance centres
  • Typical Hohner: the left centering device provides the narrowest possible distance between stitch centres

Sales

Sascha Schmidt

Do you have questions or need more information? Please contact our sales department.

T +49 7462 9468-888

Technical Information

ParameterM 45/6
Max. stitching thickness6 mm
Min. distance between staples (standard)45 – 54 mm
Crown width12 mm
Round wire
     No. 24 – 26  (0,6 – 0,5 mm)
     or No. 26 – 28 (0,6 – 0,4 mm)
     or No. 23 (0,7 mm)
Optional stitching head
for crown width 14 mm
Min. distance between staples47 – 56 mm
