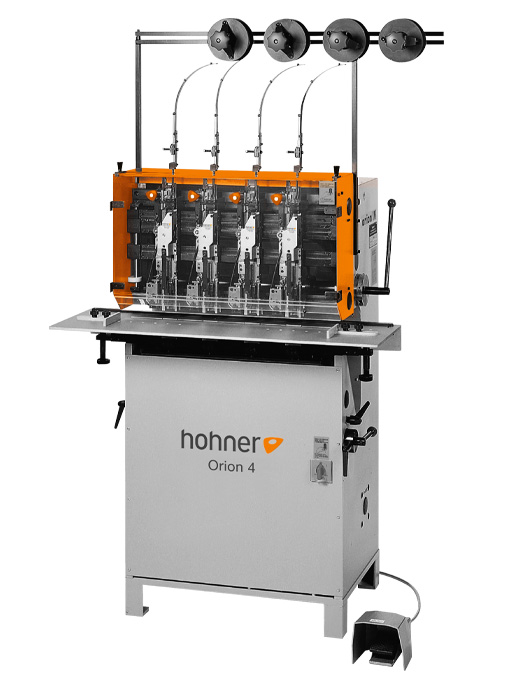

Orion 4

The flexible big one

This all-rounder wire stitching machine demonstrates its strengths with:

  • A solid construction - specially designed multiple head stitching machine for handling thick pads.
  • The flexibility to install up to four HOHNER UNIVERSAL 70/20 stitching heads for stitching thicknesses of 0-20 mm with our patented Cutting System?
  • Equally suitable as a stand-alone machine or for completion of a whole system, as well as for special constructions
  • Fast and easy table adjustment from pad stitching (flat) to brochures (saddle)
  • The possibility of unusual staple positioning due to the throat depth of approx. 230 mm from clincher box (e.g. calendar production)
  • Subsequent purchase of stitching heads at any time
  • Simultaneous central adjustment of stitching thickness and wire length of all heads with only one lever
  • A backstop and two side lays are fully adjustable for accurate and easy positioning of the staples.
  • Extremely easy for the operator to change from one format to another.
  • Conversion option to loop stitching
  • Maximum stitching per head: 192 staples per minute
  • Table size from 1000 x 330 mm

Sales

Michelle Nelis

Do you have any questions or want to apply directly? Please contact us.

T +1 8477830411

Technical Information

ORION IV
Capability and formats
Mechanic cycles per minute192
Stitching table size [mm]1000 x 330
Working height [mm]935
Throat depth from clincher box
to machine body [mm] for pad stitching
230
Throat depth from clincher box
to machine body [mm] for saddle stitching
320
Minimum staple distance [mm]70 – 100
Maximum staple distance [mm]550
Narrow Stitching heads
Maximum distance between staples550
Stitching head (standard)70/20
Stitching head (optional)HSS 18
Maximum number of stitching heads4
Crown width [mm]14
Stitching wire
Round wire (standard)No. 20 – 28*
(Ø 0,90 – 0,40 mm)

Flat wireI – IV
(0,70 x 0,35 mm – 0,90 x 0,78 mm)

Wire for loop stitching on request
*wire sizes according to european norm
Other wire types on request
Max. stitching thickness
Clinched staple [mm]20
Loop stitching [mm] (Optional)4
Exchange parts for loop stitching up to [mm]4
All indications are depending on paper type and quality.
Options
Single cycle operated by foot switch
Type of stitching headHSS 18
Exchange parts for other types of wire
Exchange parts for loop stitching kit [mm]Ø 6.0
Dimensions
Machine height [mm]2000
Floor space required [in mm LxWxH]830 x 1200 x 2000
Maximum number of work stations1
Noise emmission [dB(A)]< 82
Power requirements
Power [kW]1,1
Tension [V]230/400
Frequency [Hz]50/3~*
*Other tension types on request
Weight
Net weight [kg]605
Gross weight [kg]656
Packaging dimensions [in mm LxWxH]1100 x 960 x 1730



Subject to technical changes
